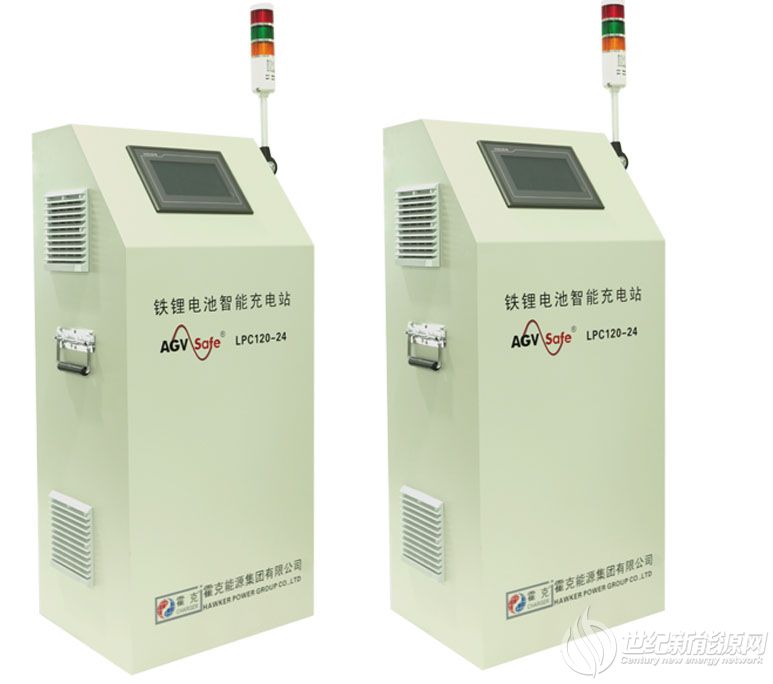

產品名稱：智能充電站
編 號：105034-439
型 號：105034-439
簡單介紹：
霍克能源集團投入了大量的人力物力，研發成功適應市場需要的移動式電源產品，其中AX系列密封免維護鉛酸電池、EV系列磷酸鐵鋰電池以及LPC系列鋰電池在線式智能充電站已成為AGV市場的標配電源。
本產品是專為自動引導/純電動客車電動叉車應用程序。產品從基本的電源模塊N + 1并行組合,***滿足24 v120a功率應用程序。本機采用控制器專為自主移動小車的汽車應用程序開發的需求,實現邏輯控制功能,系統保護,參數設置,充電器管理、上層溝通等等,采用7英寸彩色觸摸屏實現人機交互。
該系統具有以下特點:
●24 v60a 48 v50a模塊化電源直流輸出,支持當前擴展升級。
●熱交換模式,N + 1冗余保護結構
●超高功率密度,緊湊的尺寸
●標準效率高達92%
●多種使用模式(***,互動,維護費用)
●工業通信總線(可以/ MODBUS / PROFIBUS DP)
●高安全等級保護(IP54),為industri而設計的
Product Features
This product is designed for automatic guided / pure electric passenger / electric forklift applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V120A power applications. The machine adopts the controller specially developed for AGV car application demand, realize the function of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●DC output 24V60A and 48V50A modular power supply, support current expansion upgrade.
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●Standard efficiency up to 92%
●variety use mode (independent charge, interactive charge, maintenance charge)
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
This product is designed for automatic guided vehicles / electric forklifts and other applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V240A / 48V200A power applications. The machine adopts the controller specially designed for the AGV trolley application for the automatic production line. It realizes the functions of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●Ultra-high power, 240A @ 24V / 200A @ 48V
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●support current expansion upgrade
●Standard efficiency up to 92%
●Variety use mode (fast charge, interactive charge, balanced charge, maintenance charge)
●provide IO port for system interlock protection
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
Product specifications
|
Voltage level |
24Vsystem |
48Vsystem |
|||||
|
model |
LPC120-24 |
LPC180-24 |
LPC240-24 |
LPC100-48 |
LPC150-48 |
LPC200-48 |
|
|
power |
3600W |
5400W |
7200W |
6000W |
9000W |
12000W |
|
|
recharging current |
5~120A |
5~180A |
5~240A |
5~100A |
5~150A |
5~200A |
|
|
Input voltage |
220VAC±10%，50/60Hz（Optional 380VAC±10%） |
||||||
|
Power factor |
≥0.99@220Vac/50A, ≥0.98@220Vac/25A（Single module） |
||||||
|
Dynamic adjustment rate |
±5.0% for 10-90% or 90-10% Load change, Adjust the time < 200us |
||||||
|
Load Regulation |
±0.5% from 10% to 100% load |
||||||
|
Charging voltage |
16～30VDC |
43～58VDC |
|||||
|
Steady flow accuracy |
≦±0.5% |
||||||
|
Noise voltage |
< 200 mV Peak peak, 30 MHz bandwidth, < 2 mV rms Telephone weight |
||||||
|
Regulation accuracy |
≦±0.5% |
||||||
|
Time accuracy |
≦±10S/24h |
||||||
|
Charging parameter settings |
Voltage |
0.01V |
|||||
|
Current |
0.1A |
||||||
|
time |
1S |
||||||
|
Dimensions |
According to power |
||||||
|
weight |
According to power |
||||||
|
Operating temperature |
0℃~45℃ |
||||||
|
Storage temperatur |
-10℃~40℃ |
||||||
|
Working humidity |
Relative humidity 10%~80%，No condensation |
||||||
|
protection |
Overcurrent, overvoltage, overtemperature, reverse, missing, short circuit, cut off |
||||||
|
communication |
CAN/MODBUS/ PROFIBUS DP Optional |
||||||
|
Interaction DIO |
Dry contact DIO, Battery contact informs, standby, charging, charging is complete, faulty |
||||||
|
safety standard |
IEC 60950-1 |
||||||
|
Electromagnetic compatibility standards |
EN 61000-6 |
||||||
|
environment |
ETSI EN 300 019-2 RoHS compliant |
||||||
|
Insulation and pressure |
3.0 KVAC –Input pair output 1.5 KVAC –Input to ground 0.5 KVDC –Output to ground |
||||||
|
Average trouble-free working hours |
5 Million hours |
||||||
|
noise |
50DB |
||||||
LPC120-24 charging station dimensions:
LPC120-24 above specifications charging station Dimensions:
